Freud 16-560: 1/2" (dia.) Mortising Bit with 1/4" shank, 5/16" carbide height
Product details
| Management number | 209034855 | Release Date | 2026/03/29 | List Price | $14.38 | Model Number | 209034855 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description 1/2" (Dia.) Mortising Bit From the Manufacturer Used in conjunction with templates or shop-built jigs, this bit is ideal for mortising in solid wood, plywood, or composites. The solid carbide construction and downshear cutting action ensures clean,crisp hinge and hardware mortises.Perfect for Porter-Cable's #59370 Door Hinge Template and #59375 Strike and Latch Template.1/2" dia, 5/16" carbide height, 5/8" bearing, 1/4" shank

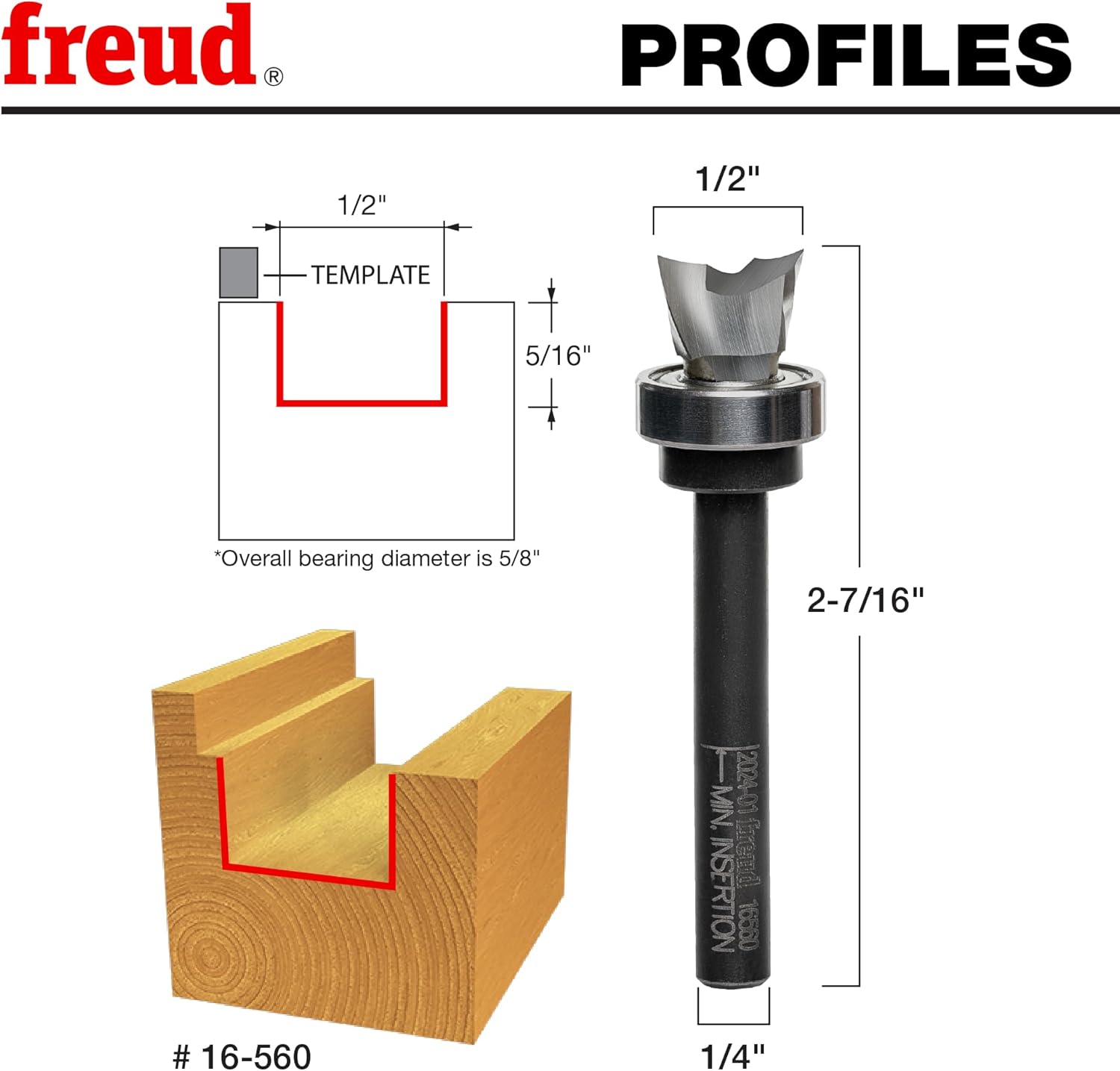

- Specs: Number of Cutters 2, Overall Dia. 1/2", Overall Length 2-7/16", Shank Dia. 1/4", Carbide Height 5/16"
- Down shear design on most bits for clean top surfaces
- Deep center gullets for fast chip removal
- Use on CNC, hand-held and table-mounted portable routers
- Available with top bearings to suit popular routing jigs
- Freud Perma-SHIELD Coating
- Features Freud's Solid TiCo¿ Hi-Density Carbide with Titanium for long life and a flawless finish
- Solid carbide construction lasts up to 50 times the life over high speed steel bit
- Shear angle design produces superior finish
- Multi-axis grinding for burn free cuts
- Oversized carbide teeth
| UPC | 008925039075 |
|---|---|
| Model | 16-560 |
| Cut Type | Straight Cut |
| Size Name | One Size |
| Brand Name | Freud |
| Unit Count | 1.0 Count |
| Item Weight | 2.24 ounces |
| Part Number | 16-560 |
| Manufacturer | Freud |
| Item Diameter | 0.5 Inches |
| Material Type | Blend |
| Item Type Name | 16-560 Top Bearing Hinge Mortising Router Bit 1/4-Inch Shank Features Freuds Tico Hi-Density Carbide with Titanium |
| Cutting Diameter | 0.5 Inches |
| Number of Flutes | 2 |
| Included Components | Mortising Router Bit |
| Warranty Description | Freud Limited Tooling Warranty. Contact Freud customer service for more details. 800-334-4107 |
| Global Trade Identification Number | 00008925039075 |
